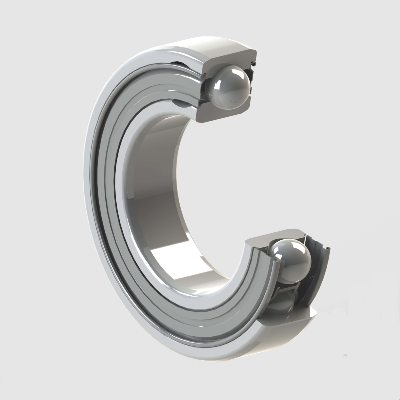

Single Row Deep Groove Ball Bearings
With Filling Slots
Single Row Deep Groove Ball Bearings With
Filling Slots
- What is Bearing ?
- Interior Design of Bearings
- Bearing Assembly and Disassembly
- Bearing Code Reference
- Types of Bearings
-
Our Products
- Single Row Deep Groove Ball Bearings
- Single Row Deep Groove Ball Bearings With Filling Slots
- Single Row Angular Contact Ball Bearings
- Double Row Angular Contact Ball Bearings
- Double Row Angular Contact (With Two İnner Rings) Ball Bearings
- Self Aligning Ball Bearings
- Four Point Contact Ball Bearings
- Cylindrical Roller Bearings
- Tapered Roller Bearings
- Catalog
200
200
| Bearing Type | Dimensions | Load Rating | Speed Limit | |||||
|---|---|---|---|---|---|---|---|---|
| d | D | B | rmin | CISO | C0 ISO | Grease | Oil | |
| (mm) | (kN) | ng (rpm) | ||||||
| 211 | 55 | 100 | 21 | 1,5 | 48,10 | 43,86 | 7 500 | |
| 213 | 65 | 120 | 23 | 1,5 | 69,07 | 65,06 | 6 000 | |
300
300
| Bearing Type | Dimensions | Load Rating | Speed Limit | |||||
|---|---|---|---|---|---|---|---|---|
| d | D | B | rmin | CISO | C0 ISO | Grease | Oil | |
| (mm) | (kN) | ng (rpm) | ||||||
| 308 | 40 | 90 | 23 | 1,5 | 46,40 | 35,80 | 9 000 | |
| 309 | 45 | 100 | 25 | 1,5 | 59,37 | 46,73 | 8 000 | |
| 310 | 50 | 110 | 27 | 2 | 68,59 | 56,90 | 7 000 | |
