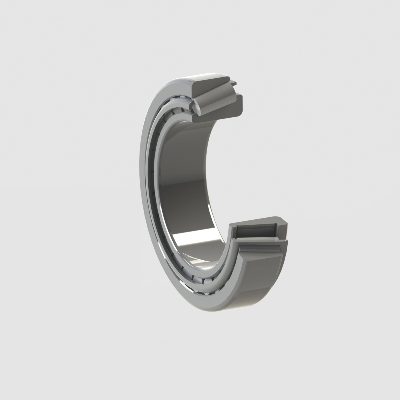

Tapered Roller Bearings

Tapered Roller Bearings

30000

30000

Bearing Type Dimensions Load Rating Speed Limit
d D C B T rmin CISO C0 ISO Thermal Reference Grease Oil
(mm) (kN) ng (rpm)
30204 20 47 12 14 15,25 1,0 28,44 29,05 10 000 8 000 11 000
30205 25 52 13 15 16,25 1,0 31,79 34,19 9 200 7 100 10 000
30206 30 62 14 16 17,25 1,0 42,14 45,81 7 500 6 000 8 000
30207 35 72 15 17 18,25 1,5 53,30 58,40 6 400 5 000 7 100
30208 40 80 16 18 19,75 1,5 64,80 71,16 5 800 4 800 6 300
30209 45 85 16 19 20,75 1,5 69,10 80,39 5 400 4 300 6 000
30210 50 90 17 20 21,75 1,5 78,95 95,59 5 000 4 000 5 300
30211 55 100 18 21 22,75 1,5 - 2,0 94,08 111,99 4 500 3 600 5 000
30212 60 110 19 22 23,75 1,5 - 2,0 100,39 117,86 4 300 3 400 4 500
30304 20 52 13 15 16,25 1,5 35,77 34,41 9 500 7 500 10 000
30305 25 62 15 17 18,25 1,5 46,81 45,11 8 000 6 300 8 500
30306 30 72 16 19 20,75 1,5 58,81 59,20 7 200 5 300 7 500
30307 35 80 18 21 22,75 1,5 - 2,0 74,32 76,43 6 400 4 800 6 700
30308 40 90 20 23 25,25 1,5 - 2,0 88,63 97,96 5 800 4 300 5 600
30309 45 100 22 25 27,25 1,5 - 2,0 112,53 127,68 5 100 3 800 4 300

31000

31000

Bearing Type Dimensions Load Rating Speed Limit
d D C B T rmin CISO C0 ISO Thermal Reference Grease Oil
(mm) (kN) ng (rpm)
31308 40 90 17 23 25,25 1,5 - 2,0 75,90 83,10 6 100 3 800 5 300

32000

32000

Bearing Type Dimensions Load Rating Speed Limit
d D C B T rmin CISO C0 ISO Thermal Reference Grease Oil
(mm) (kN) ng (rpm)
32205 25 52 15 18 19,25 1,0 38,32 46,97 8 100 7 100 10 000
32206 30 62 17 20 21,25 1,0 52,11 60,31 6 800 6 000 8 500
32207 35 72 19 23 24,25 1,5 67,22 79,71 6 100 5 300 7 100
32208 40 80 19 23 24,75 1,5 76,88 89,71 5 400 4 800 6 300
32209 45 85 19 23 24,75 1,5 82,87 101,43 4 800 4 300 6 000
32210 50 90 19 23 24,75 1,5 84,88 104,74 4 500 4 000 5 300
32211 55 100 21 21 26,75 1,5 - 2,0 107,93 133,72 4 100 3 600 5 000
32212 60 110 24 28 29,75 1,5 - 2,0 129,31 163,37 3 900 3 400 4 500
32304 20 52 21 21 22,25 1,5 45,70 47,47   8 500 11 000
32310 50 110 33 40 42,25 2,0 - 2,5 174,00 216,00 4 800 3 600 4 800
32005X 25 47 11,5 15 15,00 0,6 28,57 32,91 9 500 8 000 11 000
32006X 30 55 13 17 17 1,0 36,00 45,00 8 000 6 700 9 000
32007X 35 62 14 18 18 1,0 43,79 56,24 7 000 5 600 8 000
32008X 40 68 14,5 19 19 1,0 53,30 72,36 6 100 5 300 7 100
32009X 45 75 15,5 20 20 1,0 60,06 83,13 5 500 4 500 6 300
32010X 50 80 15,5 20 20 1,0 62,92 90,83 5 100 4 300 6 000
32011X 55 90 17,5 23 23 1,5 82,31 119,25 4 600 3 800 5 300
32012X 60 95 17,5 23 23 1,5 83,91 124,83 4 400 3 600 5 000
32013X 65 100 17,5 23 23 1,5 86,65 128,22 4 100 3 400 4 500
32310AB 50 110 - 116 33 40 42,25 1,5 - 2,0 174,00 216,00 4 800 4 300 6 300

33000

33000

Bearing Type Dimensions Load Rating Speed Limit
d D C B T rmin CISO C0 ISO Thermal Reference Grease Oil
(mm) (kN) ng (rpm)
33118 90 150 35 45 45 2,0 - 2,5 254,50 396,80 2 900 2 400 3 200
33207 35 72 22 28 28 1,5 82,34 101,27 5 800 5 300 7 100
33213 65 120 32 41 41 1,5 - 2,0 185,20 249,70 3 900 3 000 4 000

INCH Serie

INCH Series

Bearing Type Dimensions Load Rating Speed Limit
d D C B T rmin CISO C0 ISO Grease Oil
(mm) (kN) ng (rpm)
HM218248-HM218210 89,975 146,975 32,500 40,000 40,000 3,5 - 7,0 210,33 3 200
L910349-L910310 63,487 94,976 12,000 15,500 17,000 1,0 42,00 63,00
LM501349-LM501310 41,275 73,431 14,732 19,812 19,558 3,5 - 0,8 55,08 68,26 5 200 7 000
M84548-M84510 25,400 57,150 14,732 19,431 19,431 1,5 42,50 49,08

TB Series

TB Series

Bearing Type Dimensions Load Rating Speed Limit
d D C B T rmin CISO C0 ISO Grease Oil
(mm) (kN) ng (rpm)
TB0108 40 90 - 96 20,0 23 25,25 1,5 - 2,0 88,41 97,54 6 300 8 000
TB0109 45 100 - 96 30,0 36 38,25 2,0 - 1,5 137,00 171,00 4 800 7 000
TB0114 70 110 15,5 20 21,00 2,0 - 5,0 82,37 106,83 4 500 5 600
TB0119 95 135 14,0 20 20,00 2,0 - 4,0 78,00 137,00
TB0208 42 100 - 106 30,0 36 38,25 1,5 - 3,0 148,98 183,62
TB0209 45 100 - 106 16,0 19 20,75 1,5 73,00 90,00 3 400 4 700
TB0308 40 85 16,0 19 20,75 0,4 - 1,5 68,29 79,19
